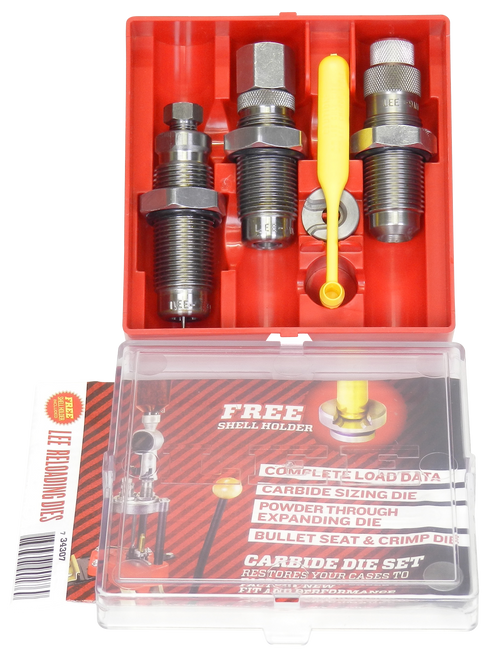

Lee Precision 90509 Carbide 3-Die Set 9mm Luger Reloading Dies

The Lee Precision 90509 Carbide 3-Die Set delivers consistent 9mm Luger ammunition with carbide sizing technology that eliminates case lubrication. This complete die set handles full-length sizing, bullet seating, and factory crimping for reliable handloaded ammunition.

What Makes This Different

Carbide sizing dies eliminate the need for case lubrication during the resizing process, reducing preparation time and preventing stuck cases. Unlike steel dies that require messy case lube, the carbide insert maintains smooth operation while extending die life significantly. The three-die configuration provides separate bullet seating and crimping operations for superior ammunition consistency compared to combination dies.

Key Features

• Carbide full-length sizing die eliminates case lubrication requirements
• Separate bullet seating die with built-in roll crimp capability
• Factory crimp die creates consistent case mouth tension
• Standard 7/8-14 thread fits most single-stage and progressive presses
• Includes shell holder, powder dipper, and load data instructions
• Precision-machined steel construction with carbide insert technology
• Compatible with all 9mm Luger brass types including mixed headstamps

This die set produces ammunition suitable for target shooting, competition, and personal defense applications. The carbide sizing die processes cases smoothly without galling or scratching, maintaining brass life through multiple reloading cycles. Factory crimp die technology applies uniform case mouth tension regardless of brass thickness variations, resulting in consistent bullet pull and improved accuracy.

Technical Specs

• Caliber: 9mm Luger (9x19mm Parabellum)
• Thread: Standard 7/8-14 TPI
• Die Construction: Precision-machined steel with carbide insert
• Set Contents: Full-length sizing die, bullet seating die, factory crimp die
• Includes: Shell holder, powder dipper, instruction sheet with load data
• Press Compatibility: Single-stage, turret, and progressive presses
• Manufacturer: Lee Precision, USA
• Model Number: 90509

Reloaders choose this die set for its proven carbide technology and comprehensive approach to 9mm ammunition production. The three-die system provides the control needed for match-grade ammunition while maintaining the speed required for high-volume loading sessions.
